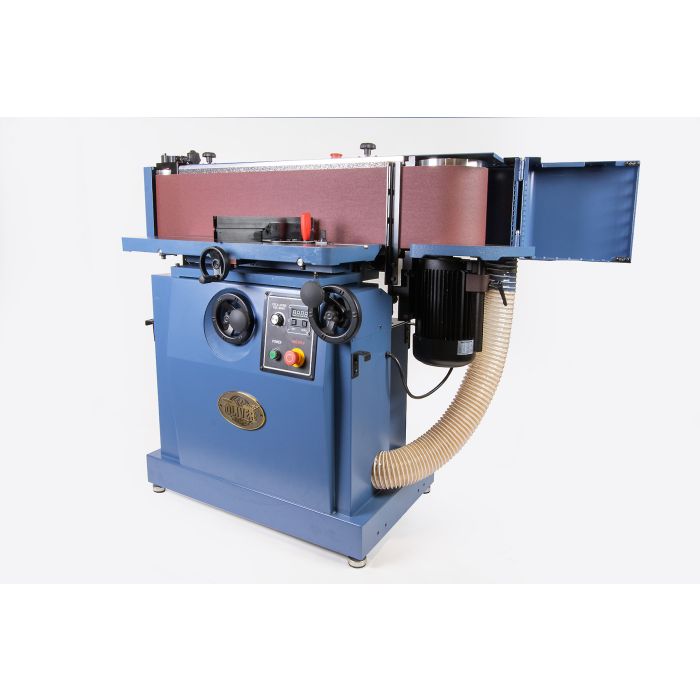

6318 9”x108” Oscillating Edge Sander (Reconditioned)
This machine was used lightly to produce the manual. Oliver’s 6318.001 9” x 108” belt sander is meticulously designed to meet your professional needs with a 108” belt size. Built like our proven larger edge sanders, in a smaller form factor, with heavy cast iron tables to ensure exceptional stability and consistency.
What truly sets this belt sander apart is its unparalleled versatility. With the ability to adjust both working tables up and down, and to angle the belt surface from 0° to 90° you have complete control over the sanding process. For curved material, the end table allows you to tackle contoured sanding applications with precision.
- Large 9” x 108” belt
- Adjustable oscillation action for a superior finish
- Heavy cast iron table
- Belt can rotate from 0° for flat sanding to 90° and anywhere in between
- Working tables adjust up and down for complete use of belt
- Spring assisted main table
- End table allows contoured sanding
- Precision balanced for smooth operation
- Built-in 4” port for dust management
- Powerful TEFC 3HP 1Ph motor
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
More Information
| Model Number | 6318 |
|---|---|
| Stock Number | 6318.001 |
| Table Length | 32" |
| Table Width | 12" |
| Table Material | Cast iron |
| Main Table Size | 12” x 32” x 1.5” |
| End Table Size | 12” x 12” |
| Main Table Working Height | 34” to 37” |
| End Table Working Height | 34” to 40” |
| Belt Size | 9” x 108” |
| Table Tilt | Belt tilts 0° to 90° |
| Oscillation Stroke | 5/8” |
| Dust Port Diameter | 4" |
| Minimum CFM Required | 650 CFM |
| Motor | 3HP, 1Ph 230V TEFC |
| Overall Dimensions | 56”(L) x 30”(W) x 44”(H) |
| Net Weight | 397 LBS |
| Gross Weight | 533 LBS |
