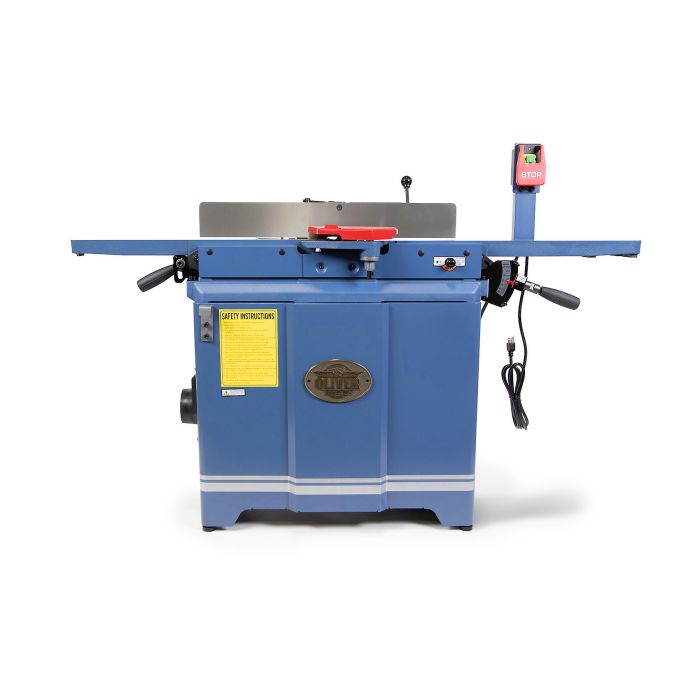

6" Parallelogram Jointer w/Oliver HCX Helical Cutterhead - 4225
- Extra-long precision ground tables provide a stable work surface.
- Parallelogram design provides smooth accurate cuts.
- Cast iron frame offers stable table support
- Fully enclosed cabinet with 4” port for superior dust management.
- Oliver HCX Helical cutterhead with premium carbide inserts.
- 4-sided cutting inserts are indexed and easy to replace.
- Lever controlled infeed and outfeed table adjustment allows quick set-up.
- Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.
- Easy to read depth of cut gauge.
- Large lockable paddle switch for added safety.
- Powerful TEFC 1HP single-phase motor.
- Ploy V-belt drive efficiently delivers power to the cutter head.
- CSA Listed.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
Related Accessories
| Model Number | 4225 |
|---|---|
| Stock Number | 4225.201 (1 HP, 1Ph, Helical) |
| Infeed Table Travel | 1/2" |
| Cutterhead Speed | 5,500 (RPM) |
| Number of Knives (helical) | 28 Inserts |
| Maximum Depth of Cut | 1/8" |
| Rabbeting Capacity | 1/2" |
| Dust Port Diameter | 4" |
| Table Dimensions | 60-3/4” L x 5-3/4” W |
| Table Height | 31-1/2" |
| Fence Dimensions | 29”L x 3-3/4”H |
| Fence Tilts | 45°, 90°, 135° |
| Positive Stops | 45° and 90° |
| Motor 1Ph | 1HP, 115V/230V, Prewired 115V (1Ph, 13/6.5 Amp) |
| Net Weight | 240 lbs. |
| Gross Weight | 375 lbs. |
Write Your Own Review
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
4225 - 6" Parallelogram Jointer with Helical Cutterhead | New Manual for 4225 | 4.5 MB | Download |
