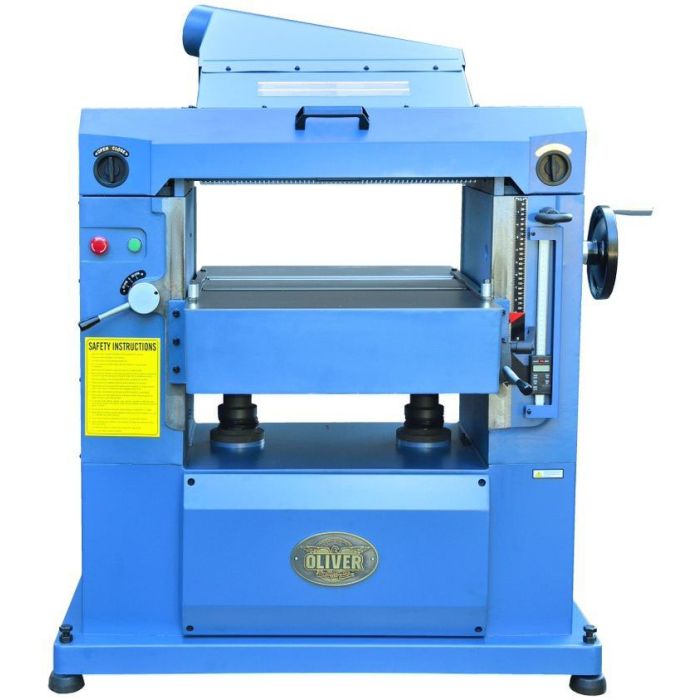

BYRD Shelix carbide inserts are indexed for quick changing.
Massive cast iron construction throughout.
Polished built-in table roller assists movement of rough stock.
Segmented infeed roller and sectional chip breaker easily handle rough stock.
2-speed gear box provides the perfect feed rate.
Magnetic controls with emergency off switch for safer operation.
Digital readout allows precise thickness settings.
Hinged access to cutter head and feed rollers for quick set-up.
Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
5” dust chute easily handles chip removal.
3 V-belt drive smoothly transfers power to drive train and cutter head.
Powerful TEFC motor available in single phase.
*Stated freight charge applies to contiguous US only. Freight to AK and HI will be quoted at current rates. Special handling also extra, see Shipping and Delivery for full details. By completing the transaction you agree Oliver is not responsible for special handling you require, but did not order.
Model Number | 4455.103B |
---|---|
CutterHead | Byrd Shelix |
ph | 1ph |
Stock No. (7.5HP, 1Ph, Byrd) | 4455.103B |
Stock Number | 0 |
Maximum Stock Width | 22" |
Maximum Stock Thickness | 9" |
Minimum Stock Thickness | 1/8" |
Minimum Stock Length | 10" |
Dust Port Diameter | 5" |
Minimum CFM Required | 900 CFM |
Infeed Roller Diameter | 3" |
Outfeed Roller Diameter | 3-5/16" |
Feed Speeds | 20 and 30 FPM |
Bed Rollers | 2, Adjustable |
Table Size | 23-3/4” x 32-1/4” |
Cutterhead Diameter | 3" |
Cutterhead Speed | 5,000 RPM |
Number of Knives (straight) | 4 |
Number of Knives Byrd | 110 Inserts |
Footprint | 44”L x 22”W |
Table Support | 2-Column |
Motor 1Ph | 7.5HP, 220V Only (38 Amp) |
Overall Dimensions | 45”W x 32”D x 50”H |
Net Weight | 1,340 lbs |
Gross Weight | 1,550 lbs. |
