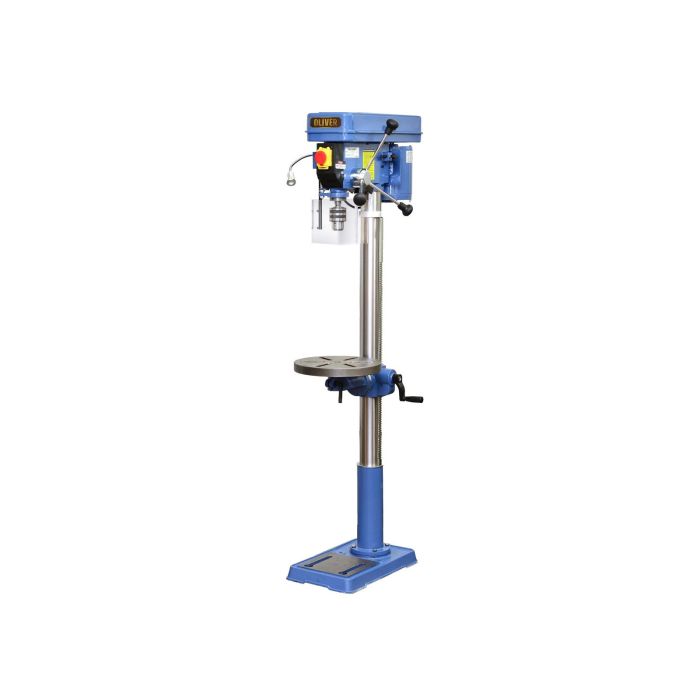

14" Swing Floor Model Drill Press - 10061
- Available in bench or floor model version.
- Line interrupt switch requires manual start in the event of a power loss.
- Spindle is supported by high quality sealed ball bearings.
- LED lamp provides a well lit work area.
- Table rotates 360° and tilts 45°.
- Crank operation moves table up and down with locking clamp.
- Laser pointer is built-in for precise repeat drilling.
- Drill chuck guard included.
- 5/8”chuck and key holder included.
- Cast iron pulleys reduce vibration.
- Positive depth stop allows repeated operations with ease.
- Powerful 1/2 HP Motor.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
| Model Number | 10061 |
|---|---|
| Stock Number | 10061.001 |
| Type | 14” Floor |
| Swing | 13-1/4” |
| Drilling Capacity | 3/4” |
| Chuck Capacity | 5/8” |
| Chuck Taper | JT-3 |
| Table Size | 11-1/2” Round |
| Table Tilt | +/- 45° |
| Spindle Taper | MT-2 |
| Spindle Travel | 3-1/8" |
| Spindle Speeds | 12 |
| Speed Range RPM | 280 to 3,000 |
| Spindle to Table | 31-1/2” |
| Spindle to Base | 48-1/2” |
| Column Diameter | 2-7/8” |
| Base Size | 10-1/2” x 16-3/4” |
| Overall Height | 62” |
| Motor | 1/2HP, 1Ph 115V (8 Amps) |
| Net Weight | 126 lbs. |
| Gross Weight | 135 lbs. |
Write Your Own Review
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
10061 Manual | 3.3 MB | Download |
